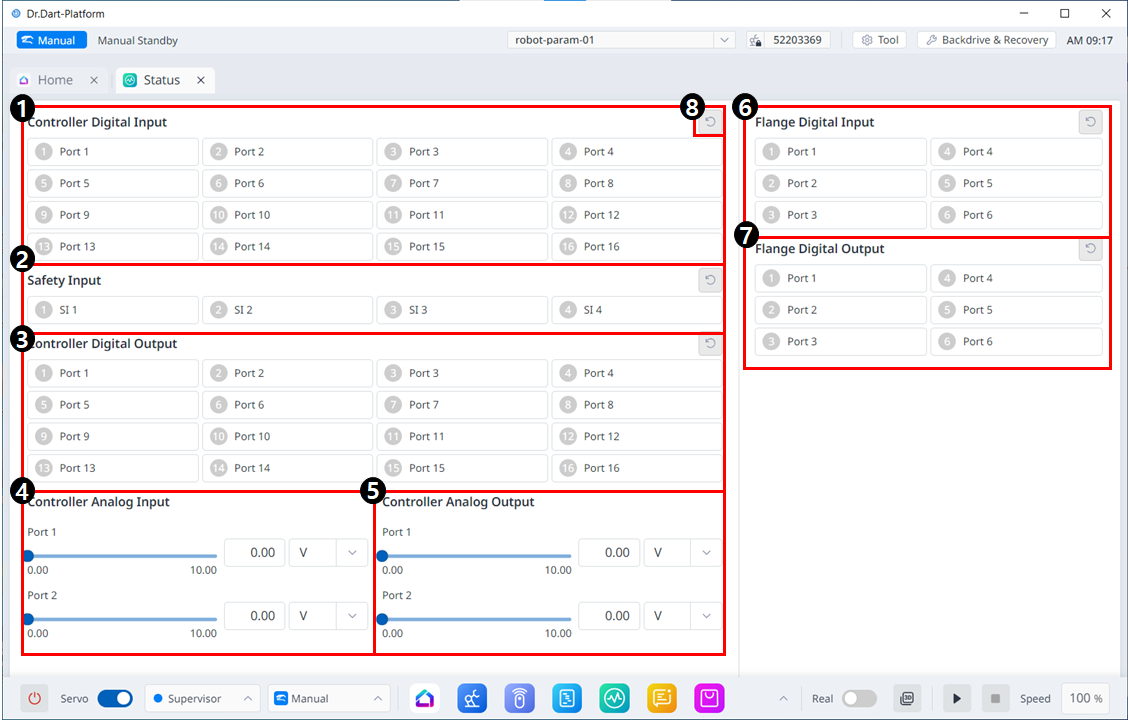

Screen layout for the Status module
Menu Items
| Item | Description | |
|---|---|---|
| 1 | Controller Digital Input | This section is where the controller digital input is set. |
| 2 | Safety Input | This section is where the safety input is set |
| 3 | Controller Digital Output | This section is where the controller digital output is set. |
| 4 | Controller Analog Input | This section is where the controller analog input is set. |
| 5 | Controller Analog Output | This section is where the controller analog output is set. |
| 6 | Flange Digital Input | This section is where the flange digital input is set. |
| 7 | Flange Digital Output | This section is where the flange digital output is set. |
| 8 | Refresh | This button allows you to change the settings to the defaults. |
