Vision Skill: Using the Barcode Skill

The Barcode skill is capable of detecting 1D/2D barcode data. You can compare barcode data already registered in the SVM with the currently detected barcode. Please use the Barcode skill freely.

In order to use the Barcode skill, you must first carry out barcode registration in Barcode Detection under the DART-Vision Detection tab and save the barcode data in the SVM. Please refer to the DART-Vision manual for instructions on barcode data registration.

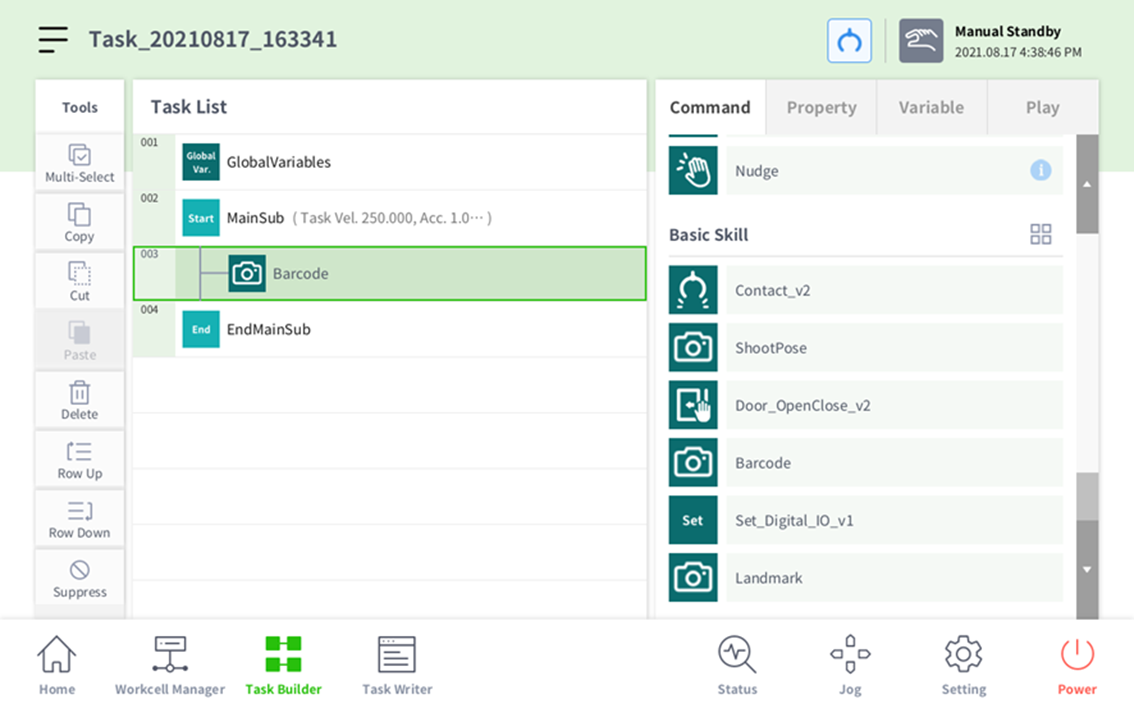

1. Click the Barcode button under the Command tab and add the Barcode skill.

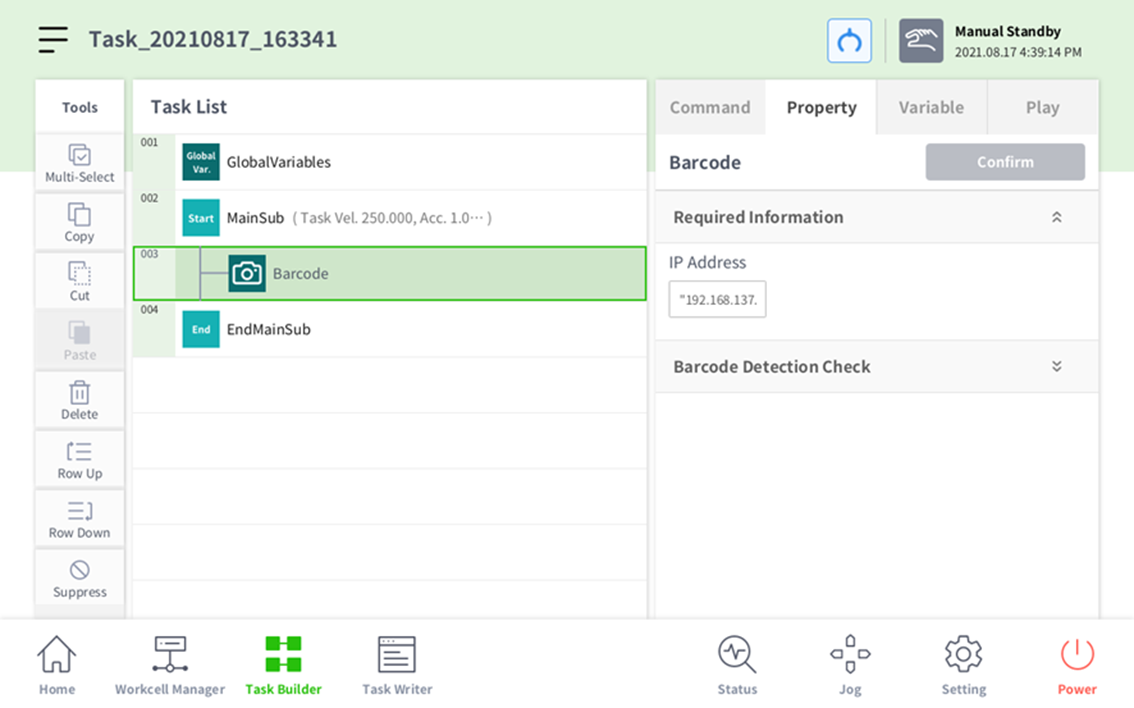

2. Open up Required Information in the Property Tab and input the IP Address and Job ID.

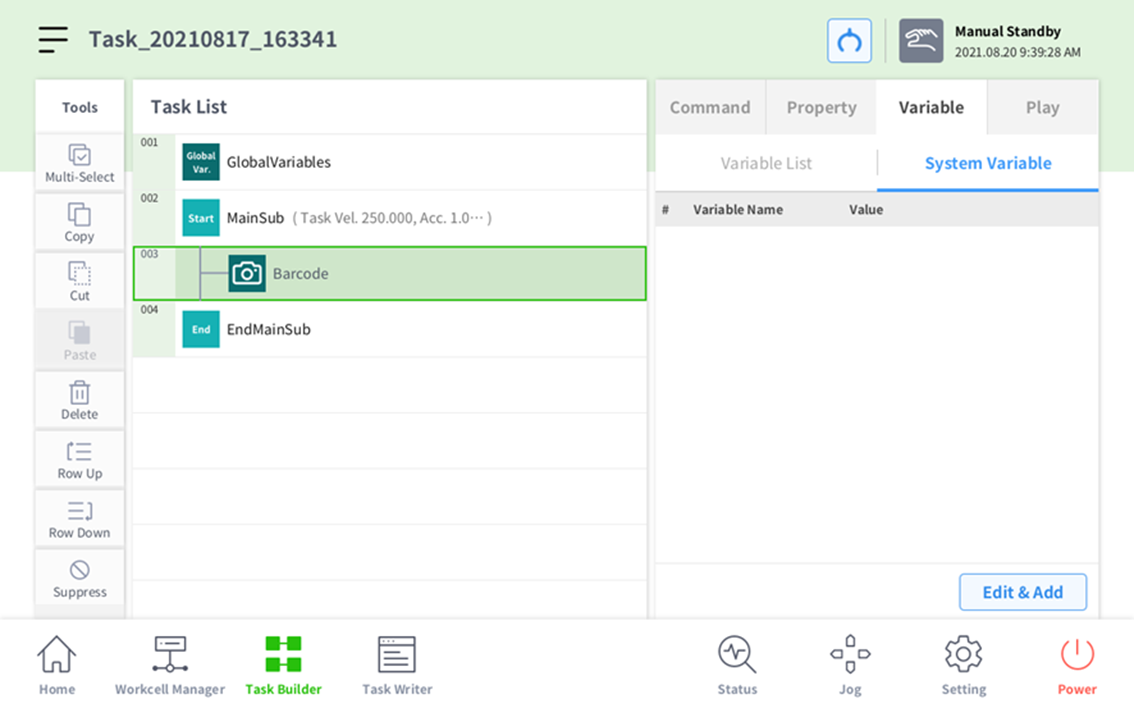

3. Click the Edit & Add button under the Variable Tab.

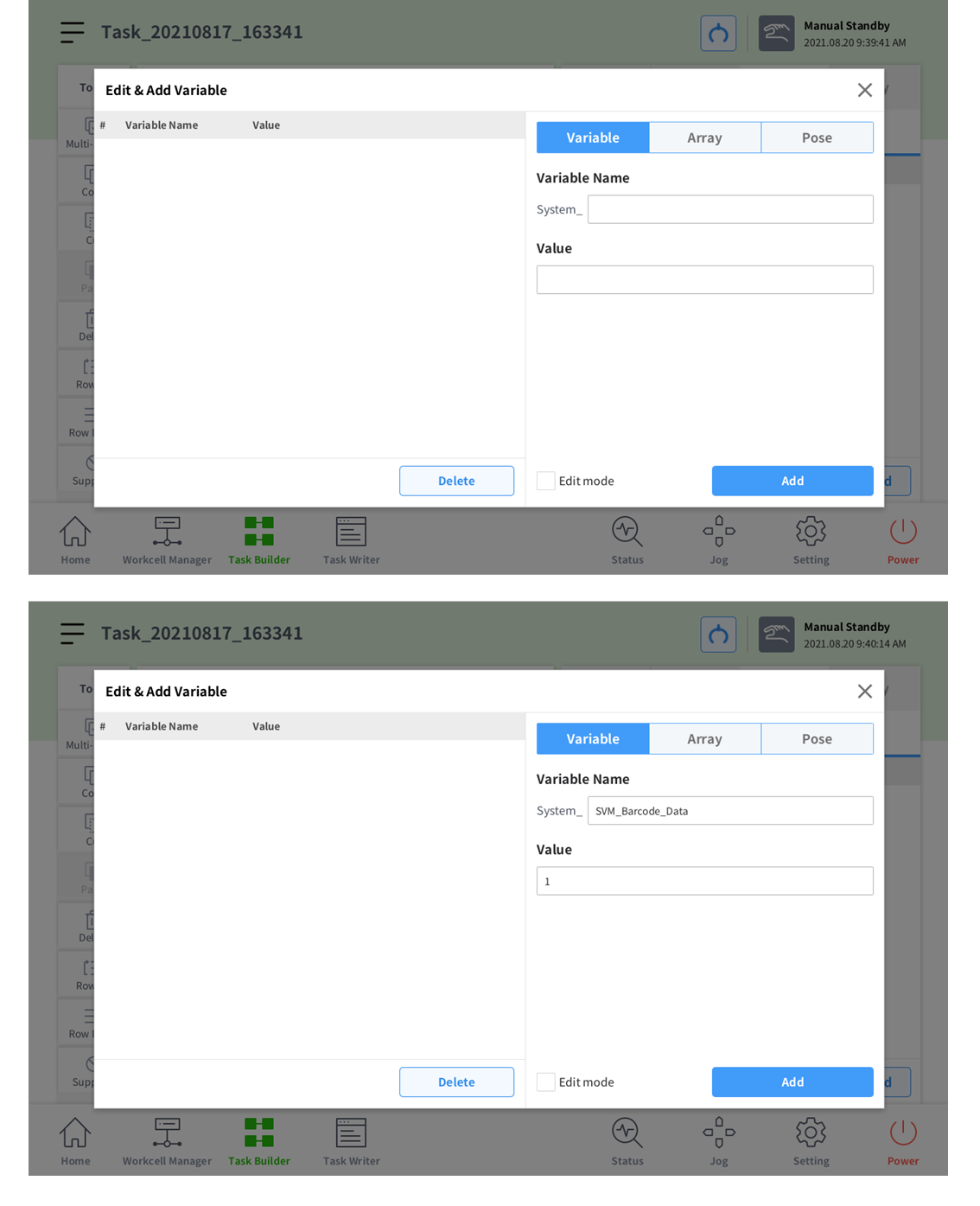

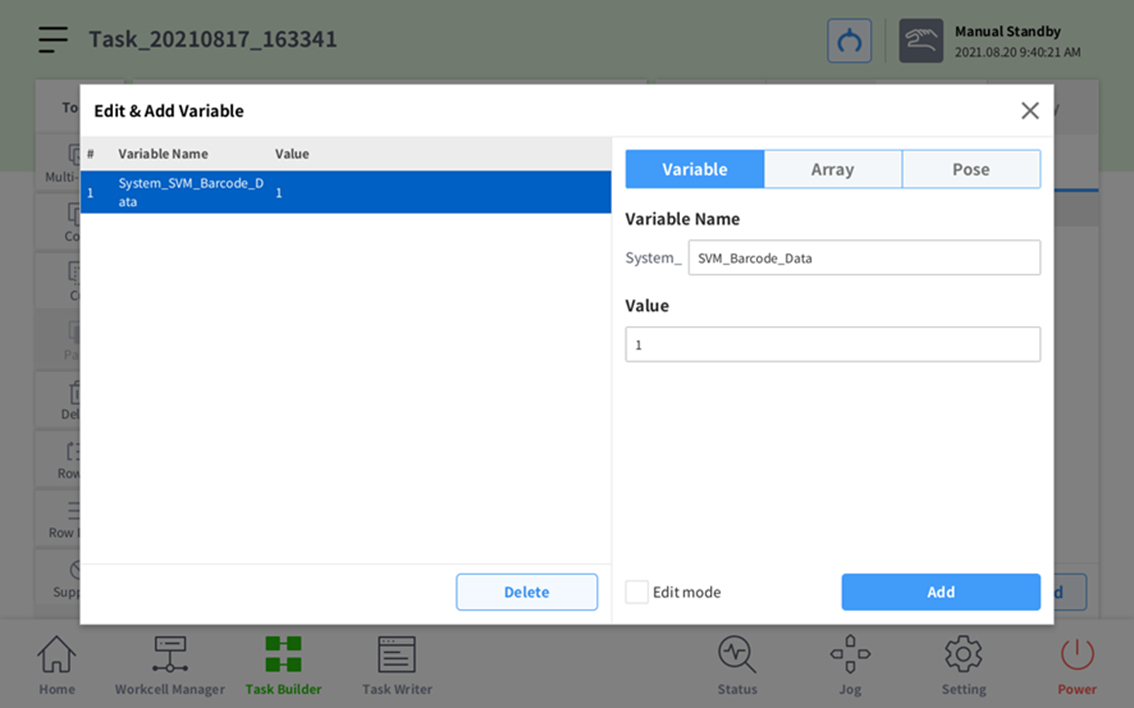

4. Click Variable, add System_SVM_Barcode_Data, and input the value.






5. Click the Add button to add the variable.

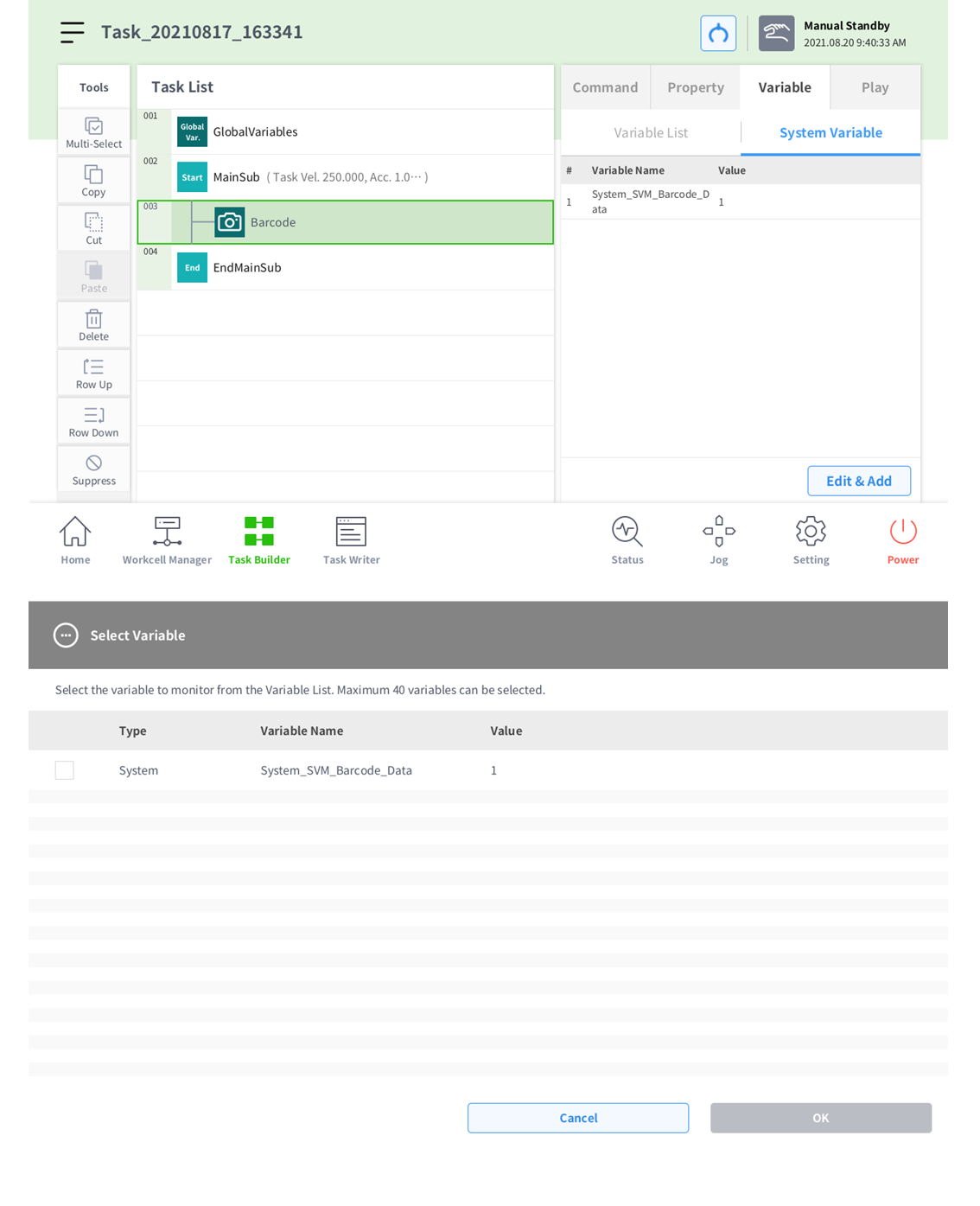

6. Close the window, press the Variable List button, then press the Variable.

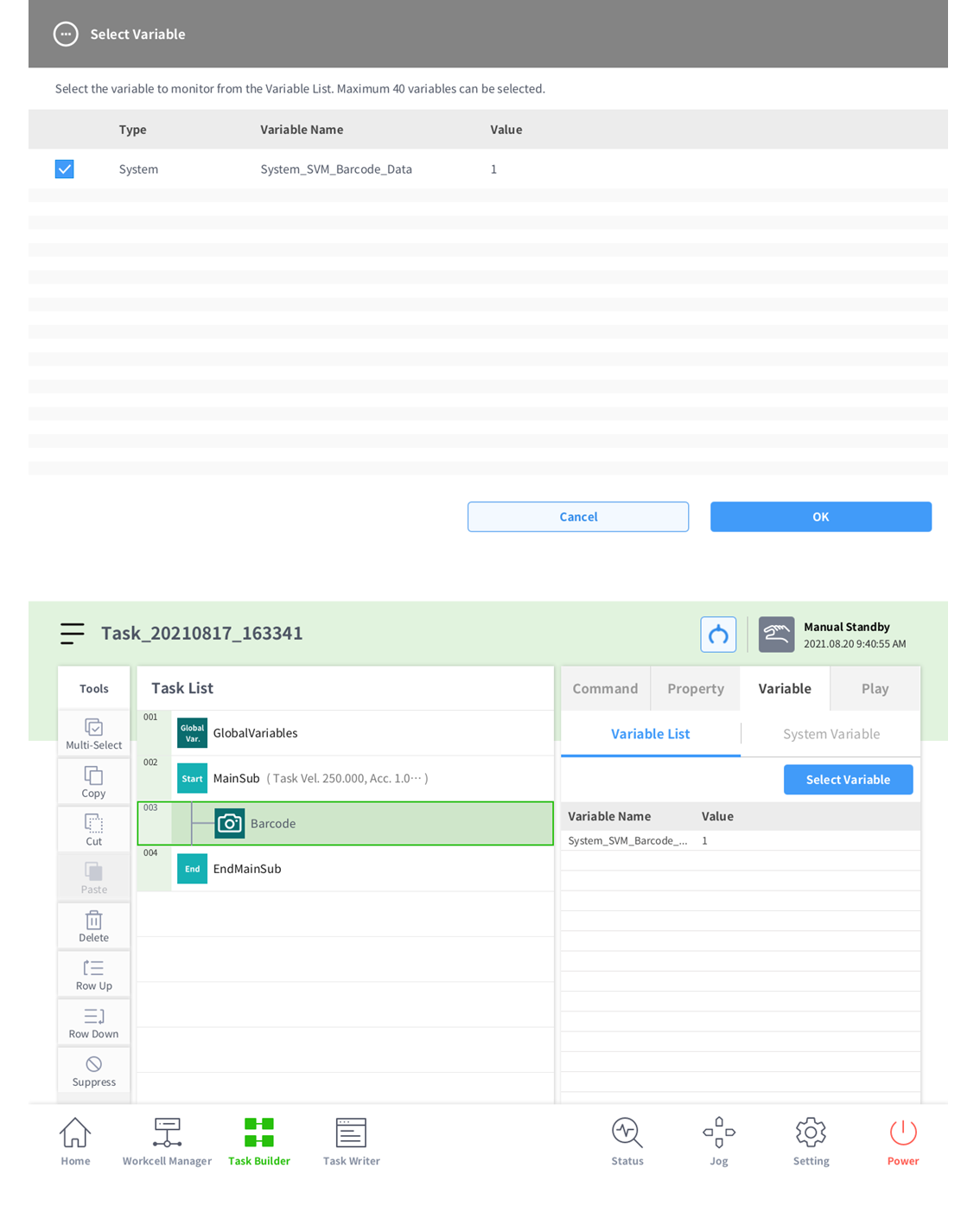

7. Check the System_SVM_Barcode_Data checkbox and press Confirm to select the Variable.

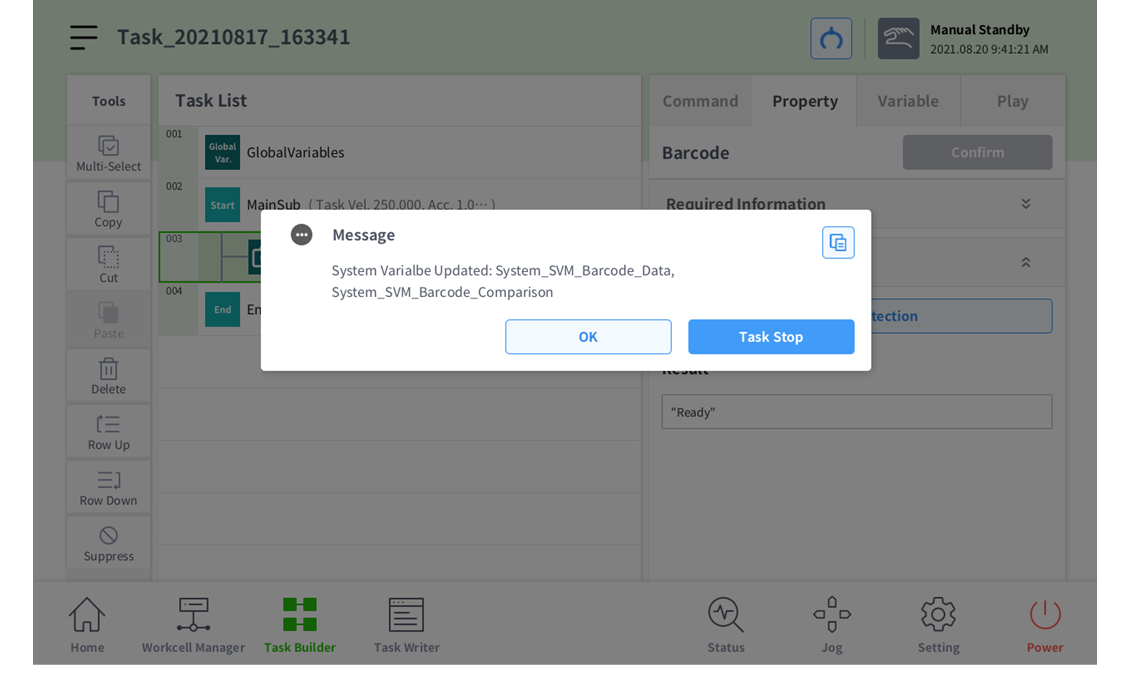

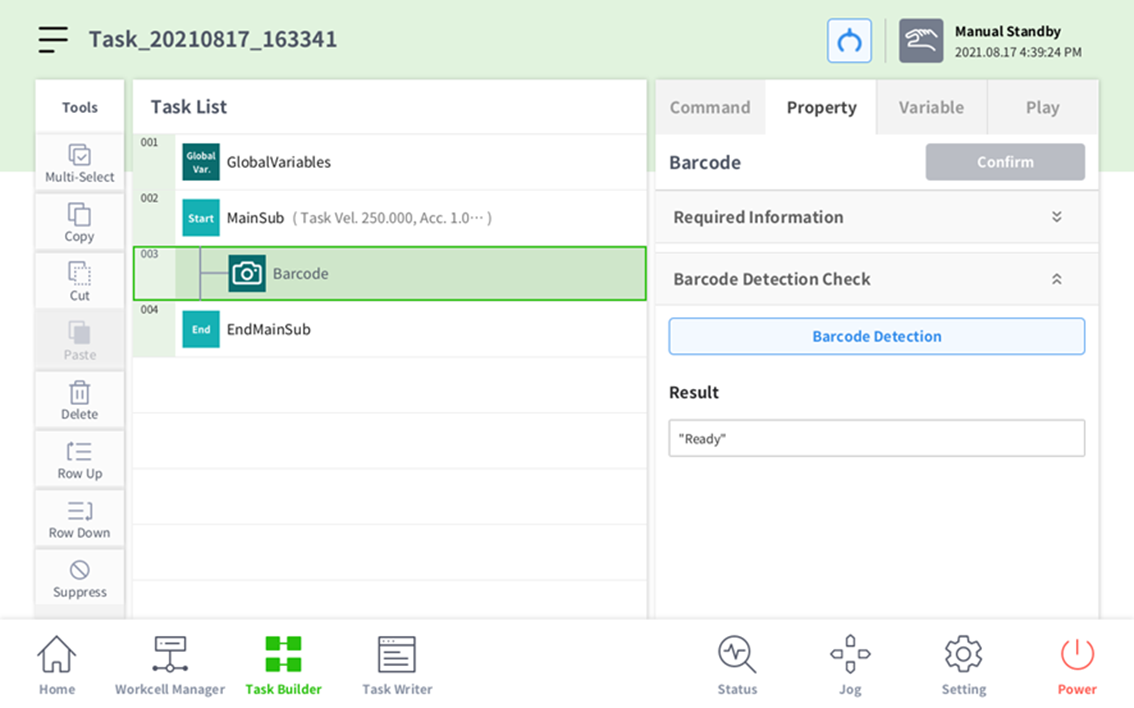

8. Open up Barcode Detection Check under the Property tab and click the Barcode Detection button.

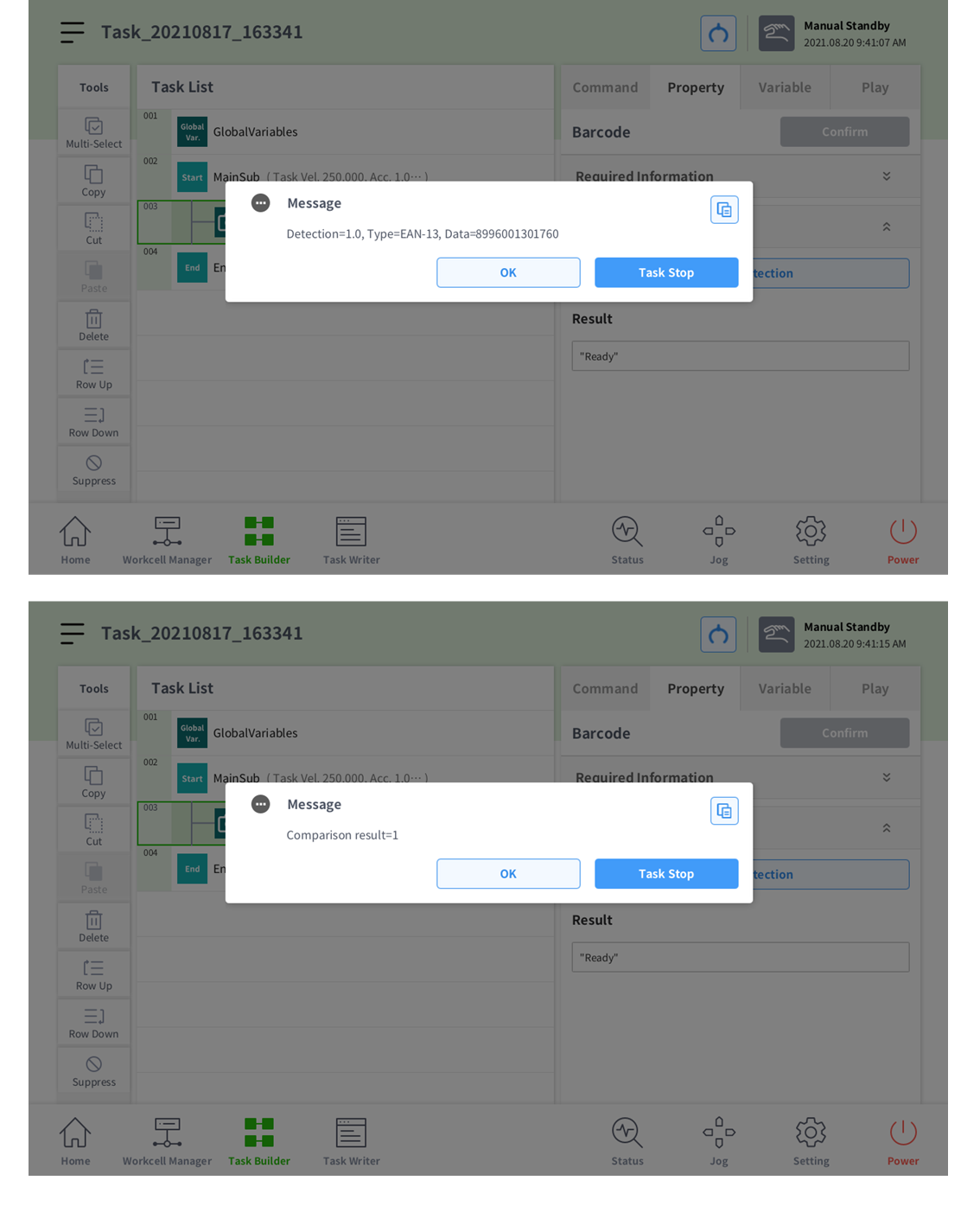

9. Use the Barcode Detection button to check that the values are normal.
