Create Position Tool and Set Teaching Area
The Position Tool is used for measuring the position and angle of an object (shape). Teach the item (shape) area to measure from the Reference Image, and set related parameters. The Position Tool measures the amount of rotation (angle) from the center point of the teaching area and the teaching area.
| No. | Item | Description |
|---|---|---|

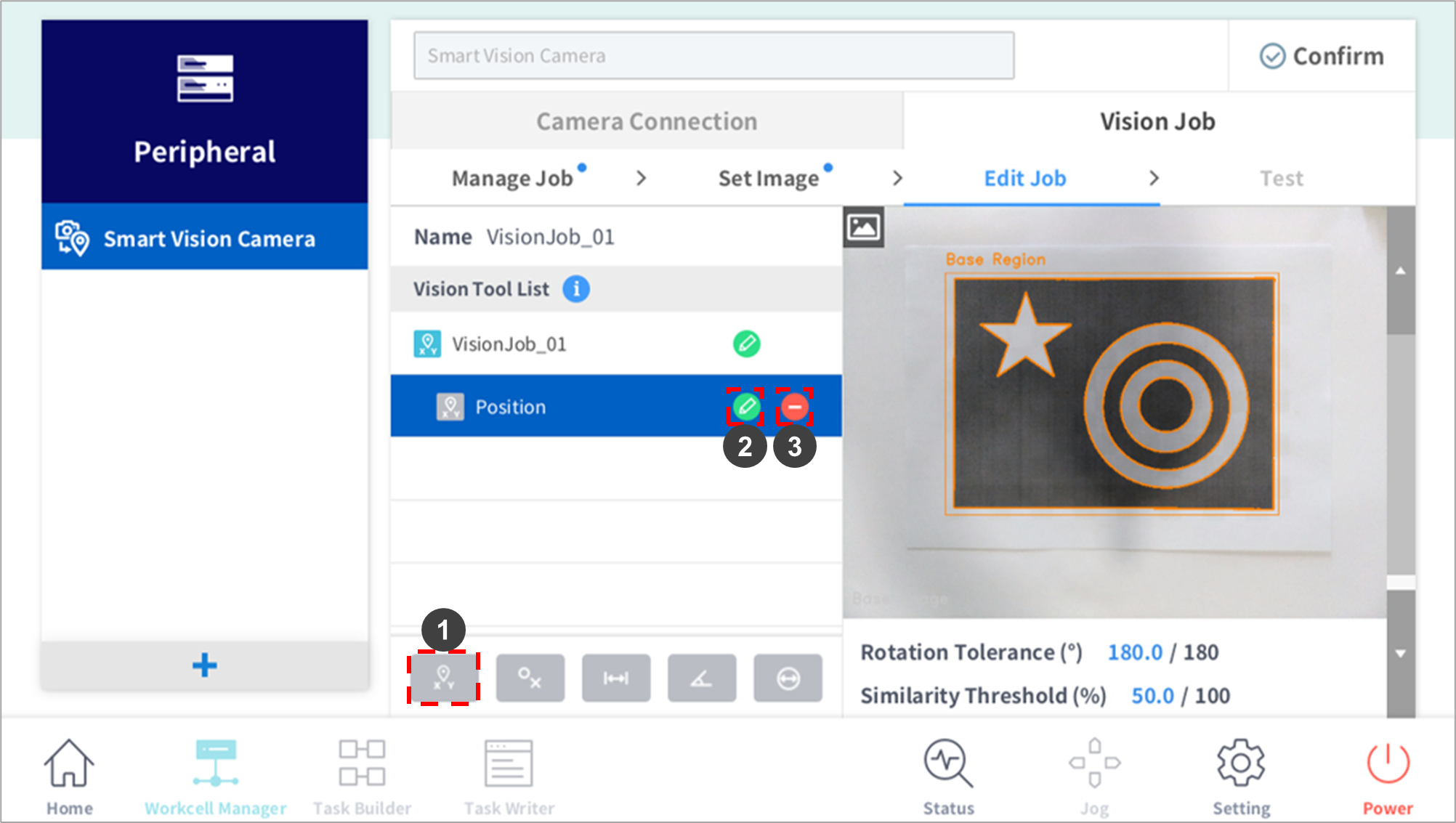

1 | Add Position Tool | Adds a Position Tool to the Vision Tool List. |
2 | Edit | A setting window of the job selected from the Vision Tool List is displayed. |
3 | Delete | The selected job from the Vision Job List is deleted. |

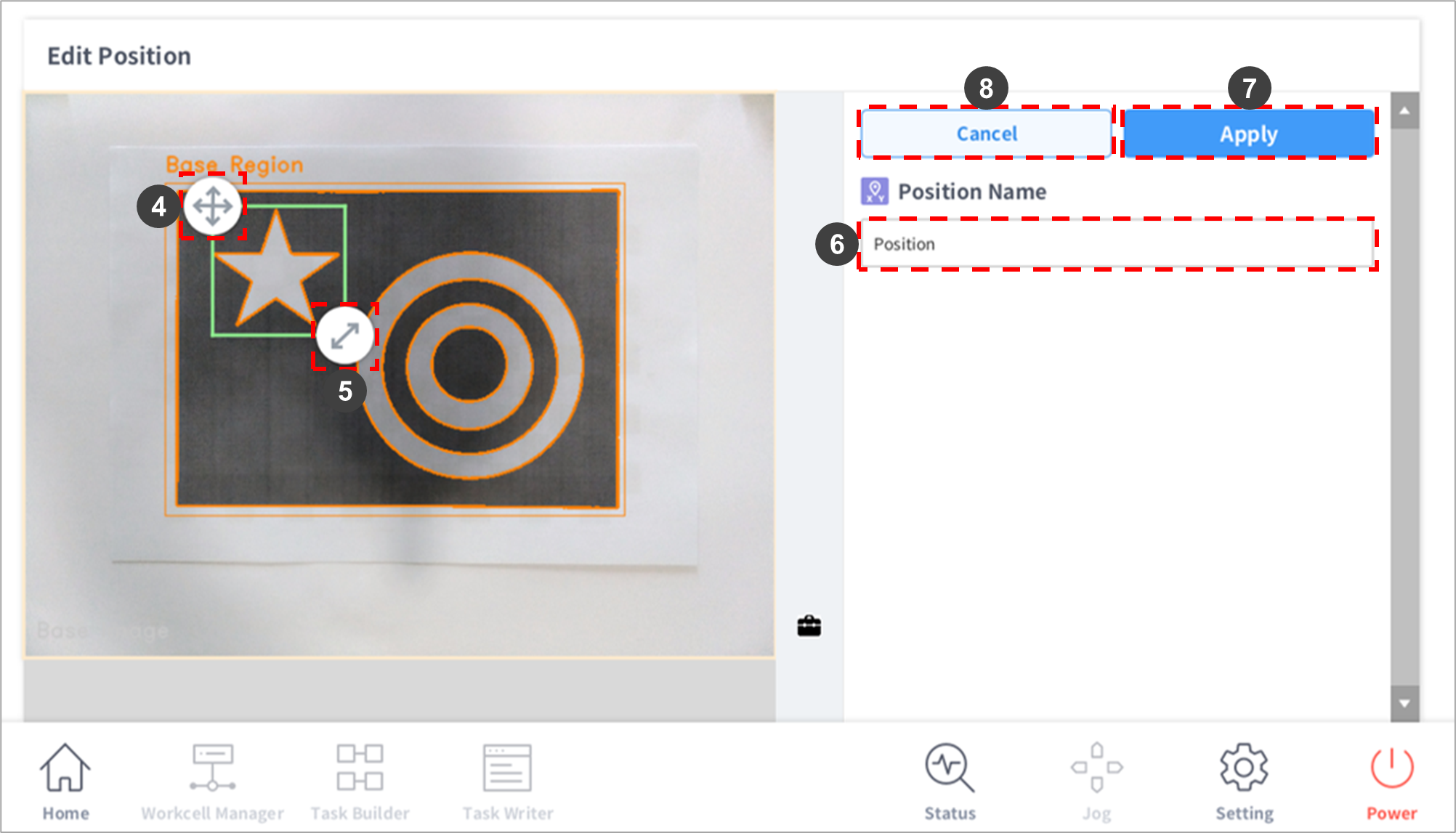

4 | Move Teaching Area | Press and hold the arrow to move the teaching area.
|
5 | Adjust Teaching Area Size | Press and hold the arrow to adjust the teaching area size.
|
6 | Edit Job Name – Edit Window | A virtual keyboard is displayed, and the job name can be edited.
|
7 | Apply | Applies Vision Job settings. |
8 | Cancel | Cancels Vision Job Tool settings. |
