Status bar information

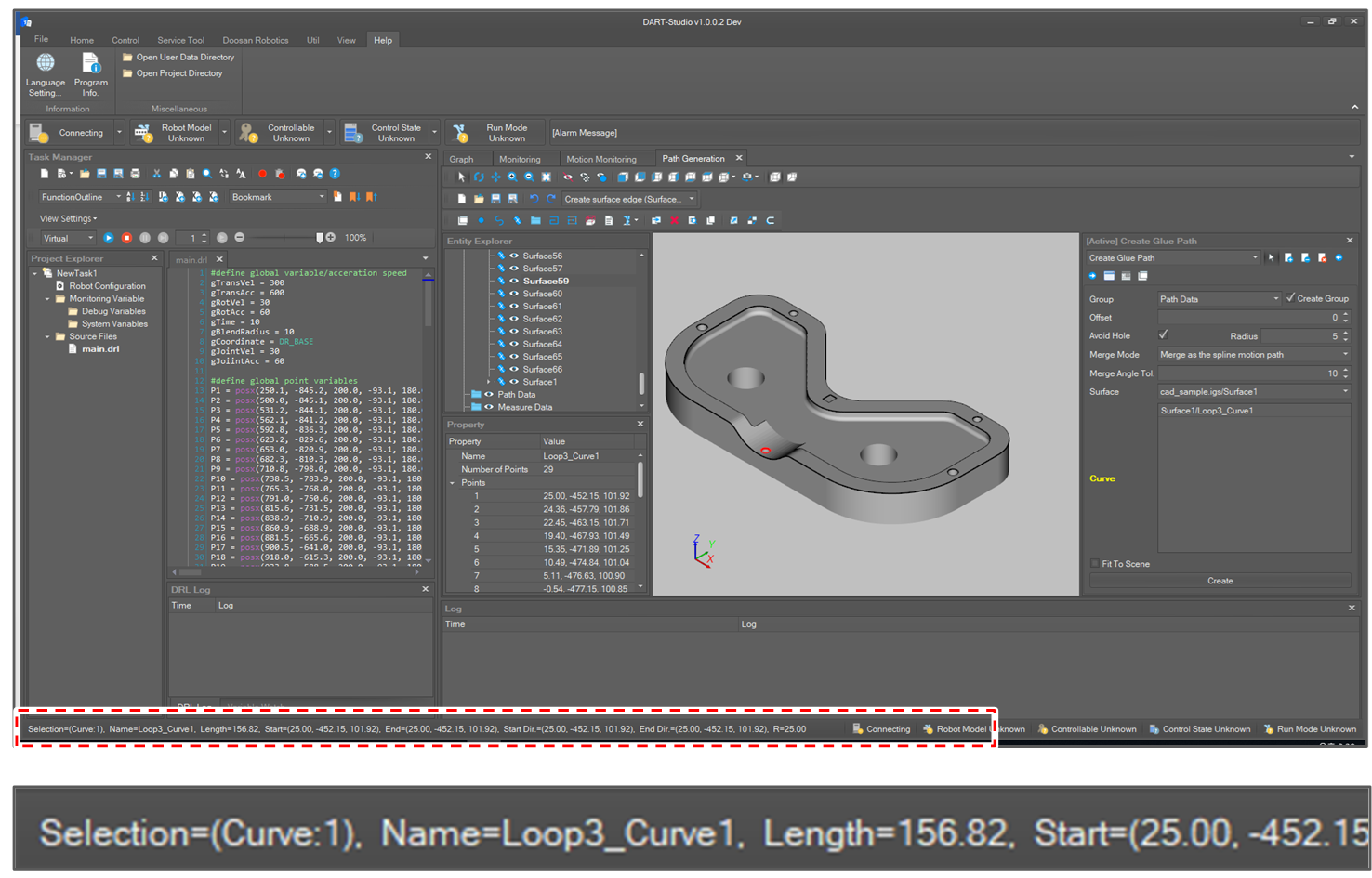

The status bar displays summary information for the selected object.

The displayed information depends on the type and the number of the selected items. The type and the number of the selected items and displayed information are as below.

1 point

Coordinates.

2 points

Coordinates, Distance between two points.

3 points

Coordinates, Angle between (Point2-Point1) and (Point2-Point3).

3 or more points

Radius of fitting circle.

1 curve

Coordinates of start and end point. Length of Curve, Tangent direction of start and end point.

2 lines

Angle between two lines.

1 arc

Radius of fitting circle.
