Setup
System Requirements
Before installing software, ensure that the computer meets the following hardware and software requirements.
Part | Minimum Specifications | Recommended Specifications |
|---|---|---|
CPU | 2.3GHz or higher | 3.70GHz or faster processor Multiple cores recommended |
RAM | 4 GB | 8 GB or more |
Disk | 1 GB of available space | 2 GB or more of available space |
Graphic Card | Intel HD Graphics 620 or similar | Intel UHD Graphics 620 or similar |
Display Settings | at least 1280 x 1024 | 1920 x 1080 Full HD or higher |
Mouse | Three-button mouse | Three-button mouse |
Operating System | Microsoft Windows 7 SP1 (64-bit) | Microsoft Windows 10 (64-bit) |
Caution
This software may have compatibility problems with a lower controller version than GF020400.
Installation
Install
- Download and run the installer for DART-Studio.
- On the Select Destination Location screen, accept or change the location for storing the DART-Studio program files, and then Click.
- On the Select Additional Tasks screen, select or do not create a desktop shortcut, and then click Next
- On the Ready to Install screen, click Install.
- On the Completing the DART-Studio Setup Wizard screen, select or do not launch DART-Studio, and the click Finish.
Uninstall
- Depending on your device and version of Windows, access Uninstall or change a program screen from the Control Panel.
- In the list view of programs, find and select your version of DART-Studio, and then click Uninstall.
- On the Uninstallation Successful screen, click OK.
Licensing
The purpose of the license may vary depending on the user. In addition, the features available may vary depending on the intended use of the license. In addition, It is installed as a 30-day limited trial on the initial installation of the program and will no longer be available when the license expires.
Standalone License
A standalone license is a product key that can be used to run DART-Studio on your device. The license must be validated and activated prior to its use.
- Run the installed DART-Studio.

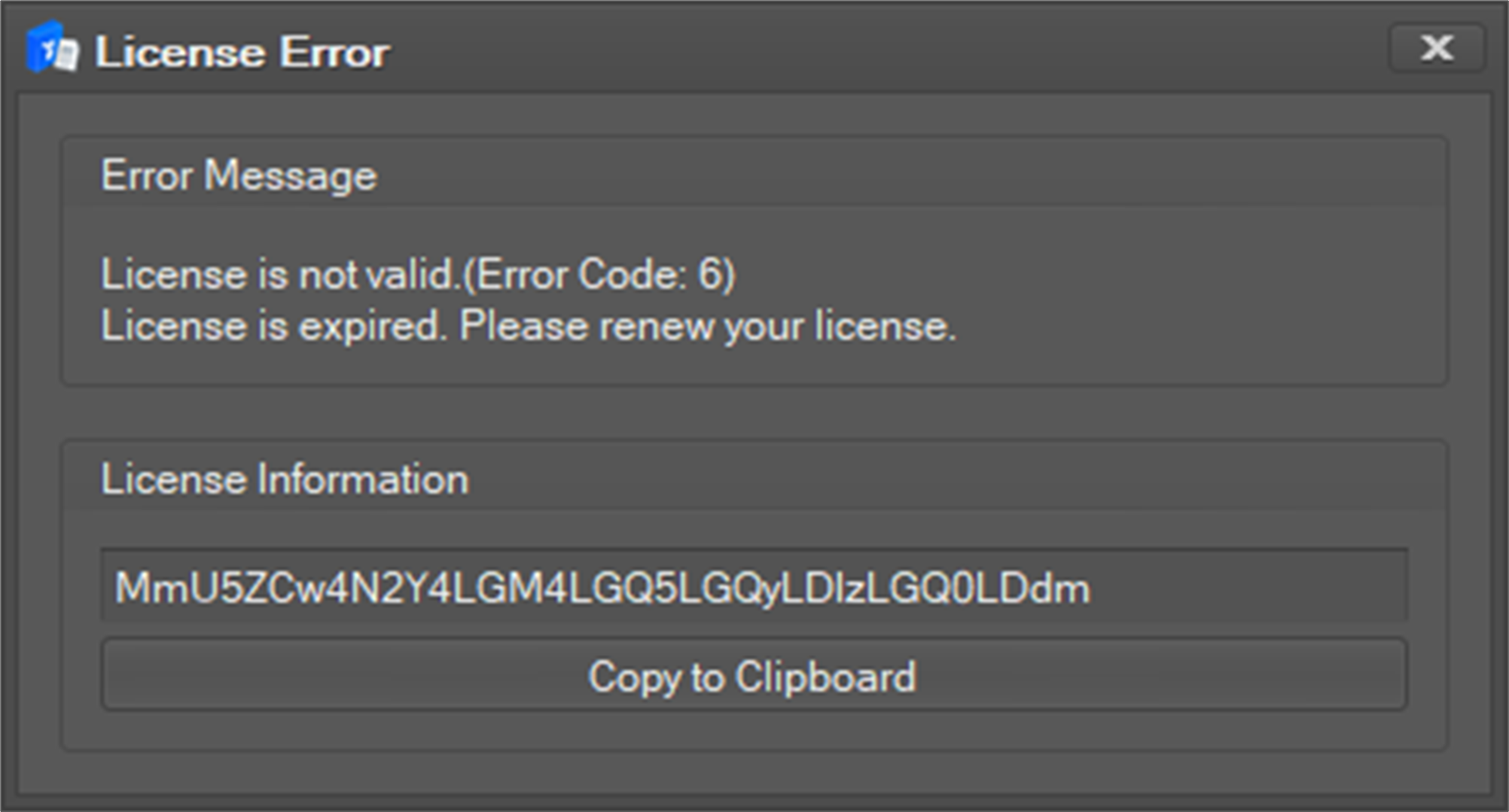

- If the license file is not registered or the license is expired, DART-Studio will not run and you will see the License Error screen, as shown below.
- Click the Copy to Clipboard button of License Information. Inform your license provider about the generated license information key so you can obtain a license file.
- Copy the license file to the installation path of DART-Studio to complete the license registration. (Generally, the installation path is C: \ Program Files \ Doosan Robotics \ DART-Studio.)

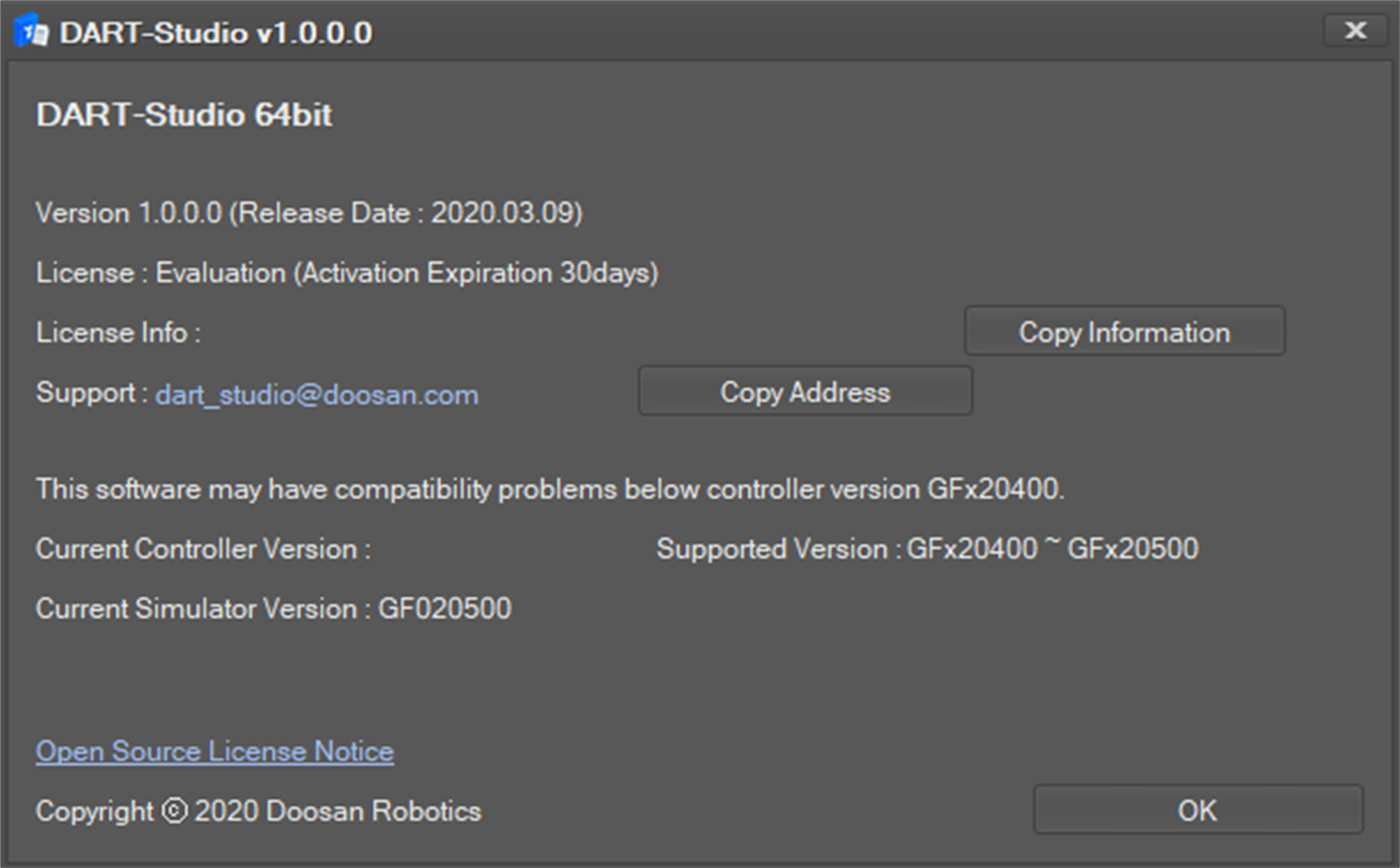

- If you want to obtain a license file before the license error window appears, please inform the license provider about the generated the license information that you have copied by clicking the Copy Information button in the License Info. as shown below. The program information window pops up when you click the Help-> Info-> Program Info button on the top menu.
