Load CAD files

The program provides to load shapes from CAD files.

Supporting CAD Format

3D CAD File

IGES (.igs, .iges), STEP (.stp, .step)

3D Shape File

STL (.stl)

2D CAD File

DXF (.dxf)


Note

IGES, STEP files are standard CAD file formats used widely. If the format of a CAD file is not one of them, translate the cad format by using CAD software.

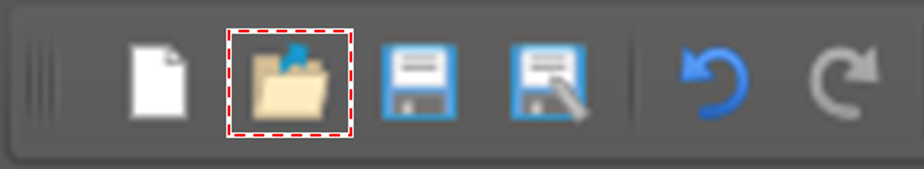

  1. Click [Open document] button in the menu bar.

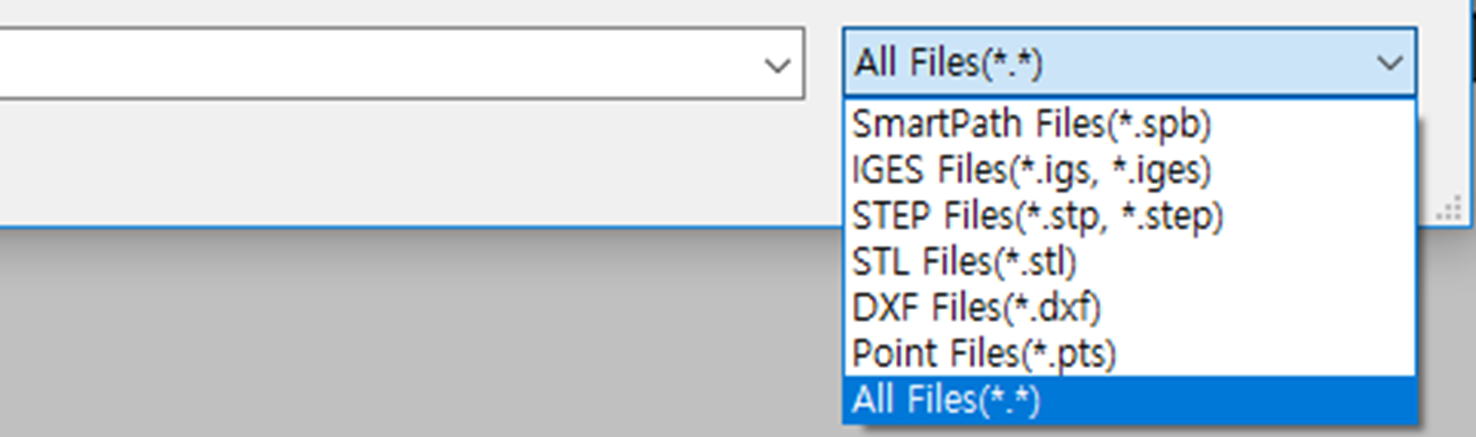

  2. Select CAD files in the file open dialog.


Note

2 or more files can be loaded at once.

.spb file is a path generation document file. So the file cannot be loaded with other file format files.
