External Encoder Setting

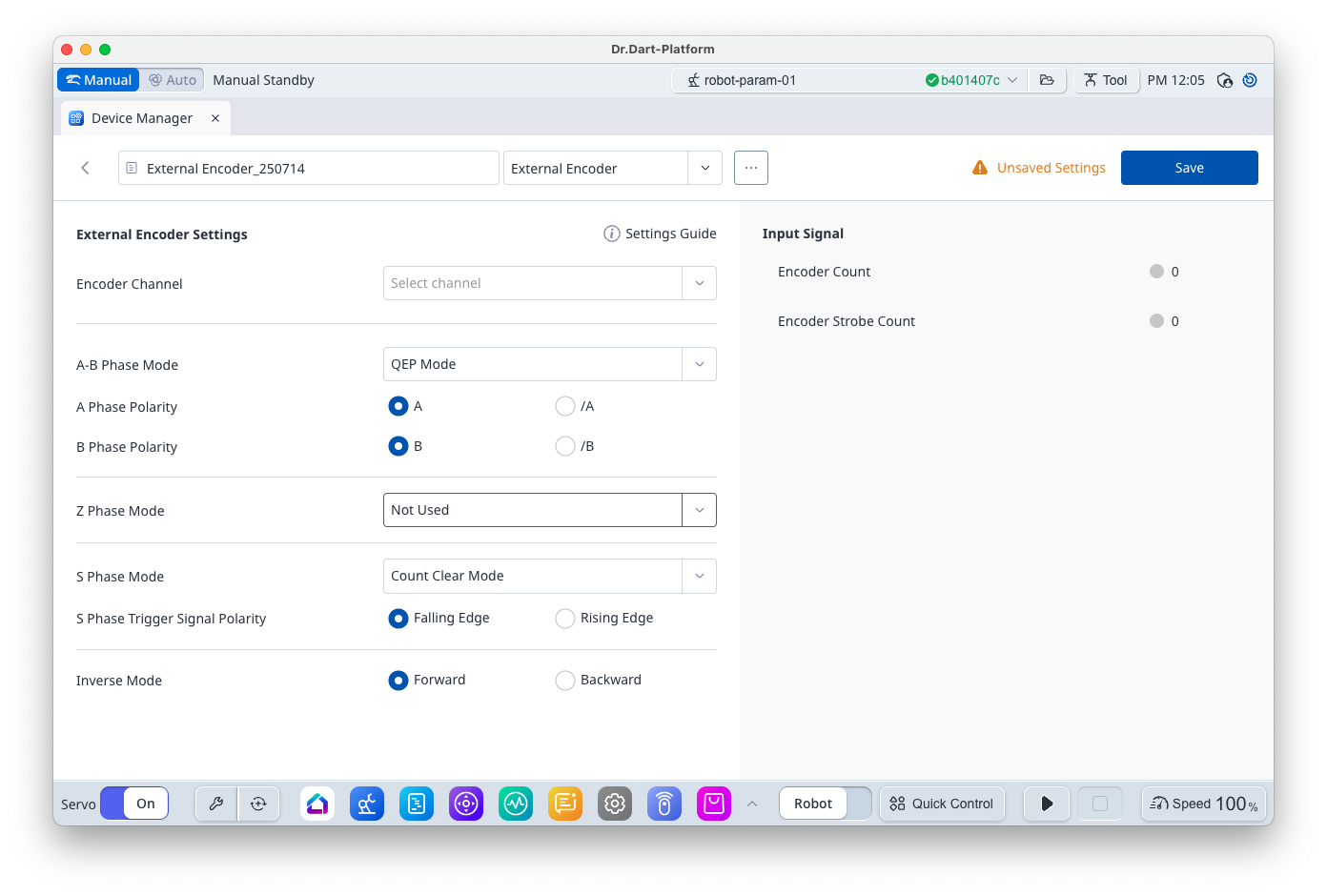

[External Encoder] device,

• sets the [Encoder Channel] according to the encoder connection

• sets the [A-B Phase Mode] according to the encoder specification

• sets the [S Phase Mode] according to the triggering switch sensor specifications and configurations.
