Creating WCI&Skill for single-acting tool

In this exercise, we create WCI and Skill for single-acting tool.

[WCI]: Single-Acting Tool

• Communication Type: Digital I/O (Controller Port)

[Skill]: Tool-related Skill

• Example Skill: Gluing/EndTask
• Robot Motion + I/O Action

Doosan Robotics provides a Sample for this exercise on the App Builder website. You can easily create WCI and Skill for single-acting tool by copying the following Sample.

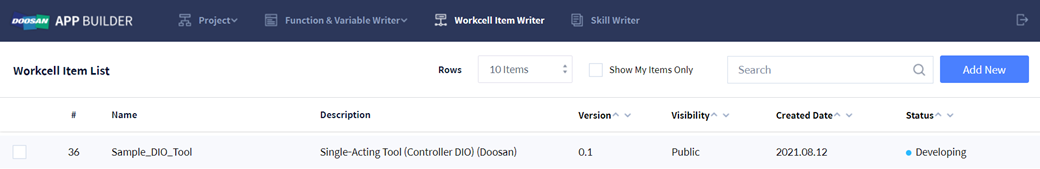

WCI Writer

• Sample_DIO_Tool

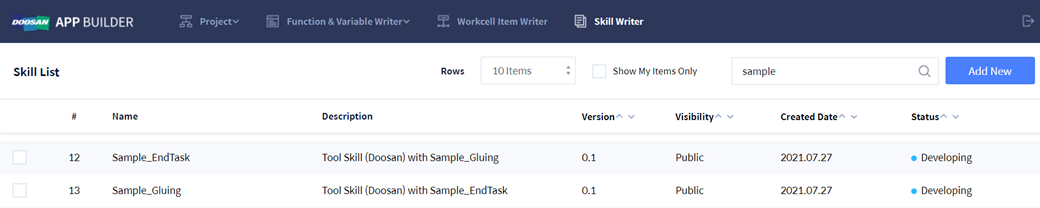

Skill Writer

• Sample_EndTask
• Sample_Gluing

Specific details of WCI and Skill described by this exercise and Sample may differ depending on the version of the Sample.

1) Gripper

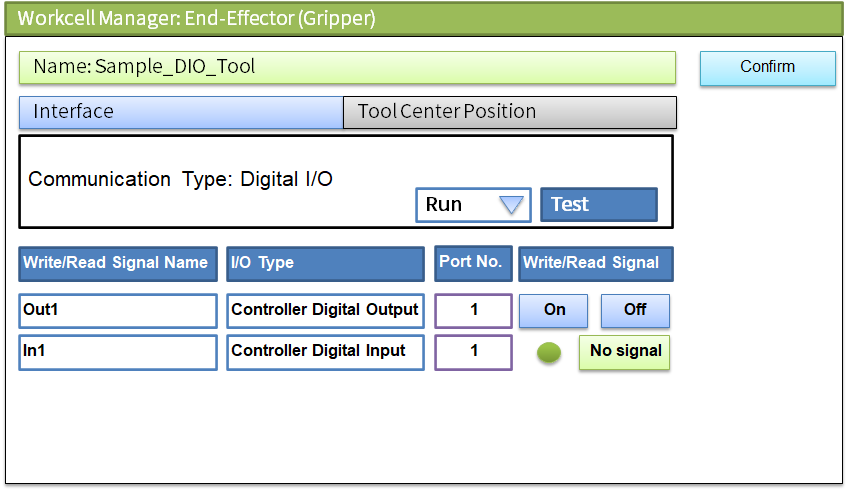

• The schematic diagram of Workcell Manager UI is as follows.

2) Gluing

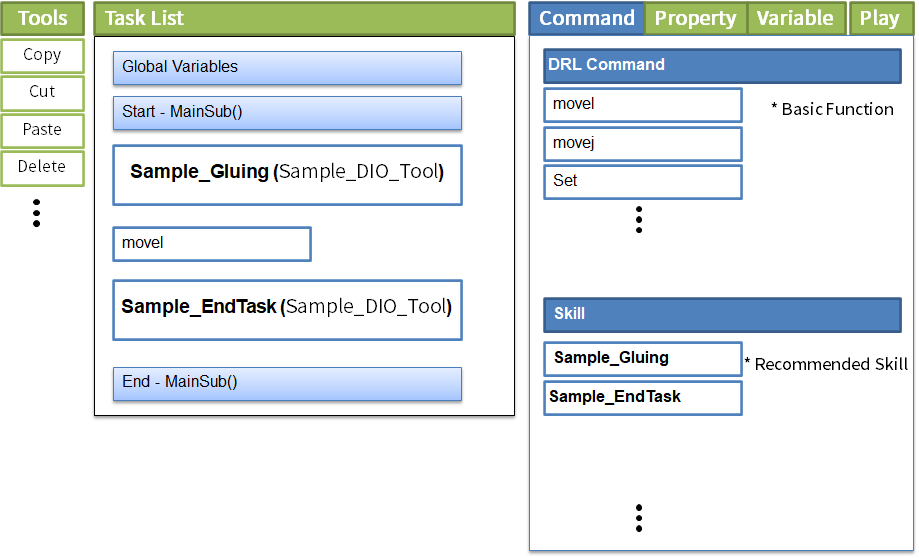

• EndTask: The schematic diagram of Task Builder UI is as follows.

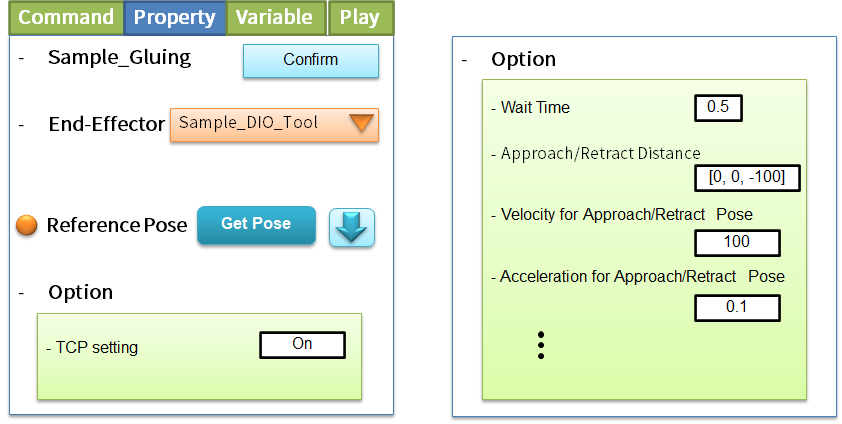

• Property: The schematic diagram of Task Builder UI is as follows.
