Global Variable for single-acting tool

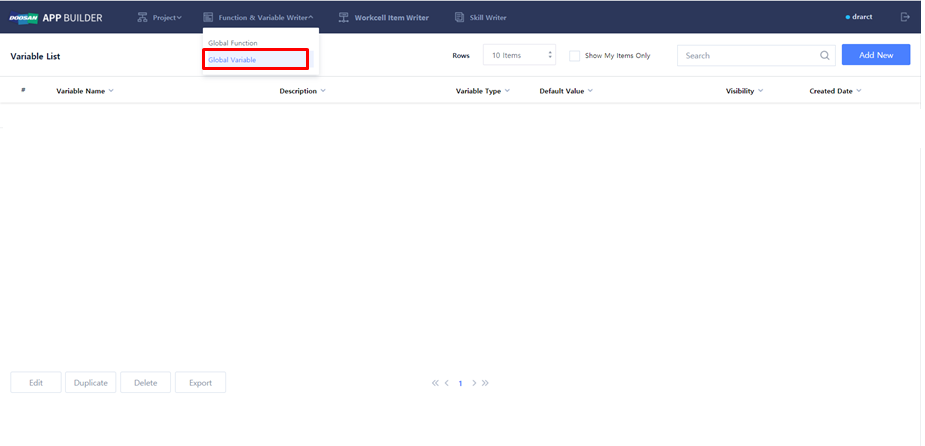

Create Global Variable

Global Variable commonly used in various WCI & Skill can be created.

• Function & Variable Writer → Select Global Variable.

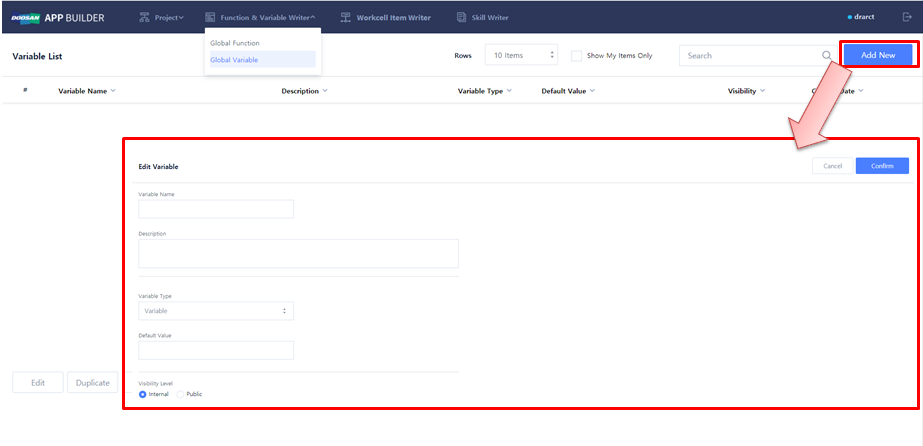

Edit Global Variable

Global Variable can be newly created, or existing Global Variable can be modified.

• Create new Global Variable: Add New
• Modify existing Global Variable: Check one of existing Global Variables → Edit

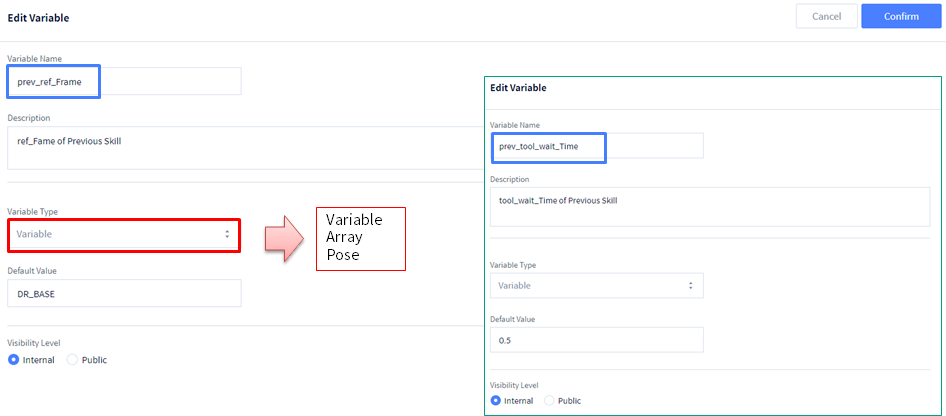

Create and modify Global Variable

• Write the name and description of Global Variable in Variable Name and Description.
• Select Variable Type and enter Default Value.
• Set Visibility Type.
• Save Global Variable → Confirm
• Sample Variable: prev_ref_Frame, prev_tool_wait_Time

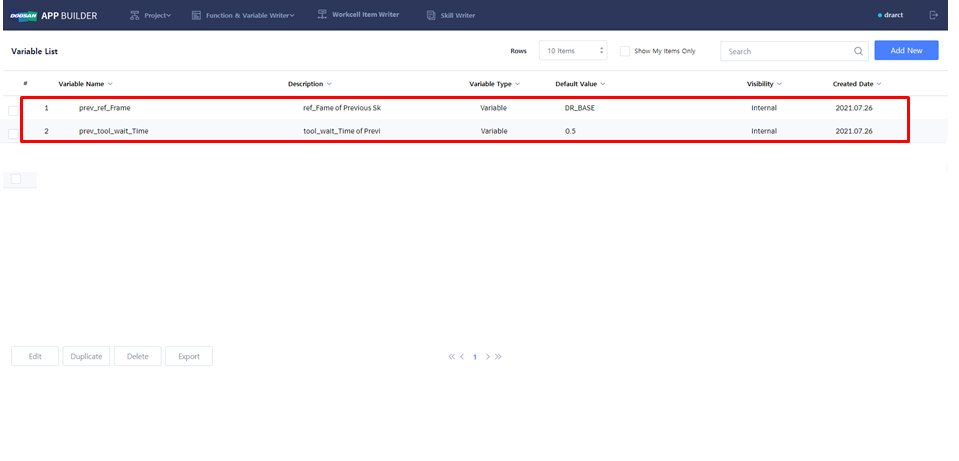

Global Variable List

Save Global Variable to check the list as follows.
