Serial

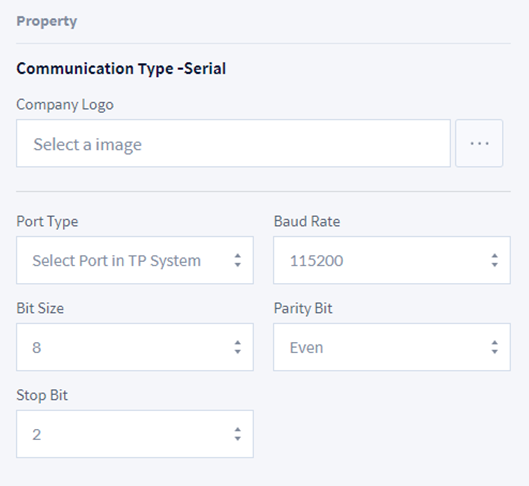

Item	Description
Company Logo	Attach a logo image of the company manufacturing the Worcell Item.
Port Type	Select the port type of the serial. When “Use Flange Serial Only” is selected, it supports the Flange Serial communication method.
Baud Rate	Set the Baud Rate.
Bit Size	Set the Bit Size.
Parity Bit	Set the Parity Bit.
Stop Bit	Set the Stop Bit.

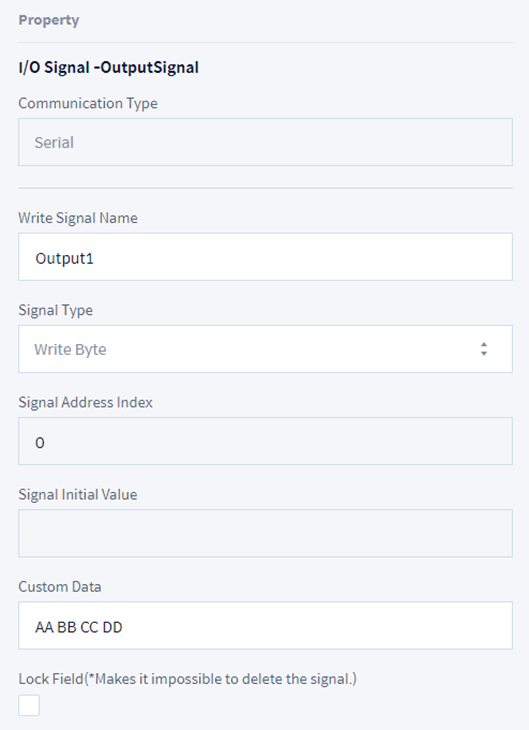

Item	Description
Write Signal Name	Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.
Signal Type	Signal type is Write Byte
Signal Address Index	This menu is deactivated.
Signal Initial Value	This menu is deactivated.
Custom Data	Enter the data to send.
Lock Field	Check the item to set so that it cannot be edited or deleted in the top controller.

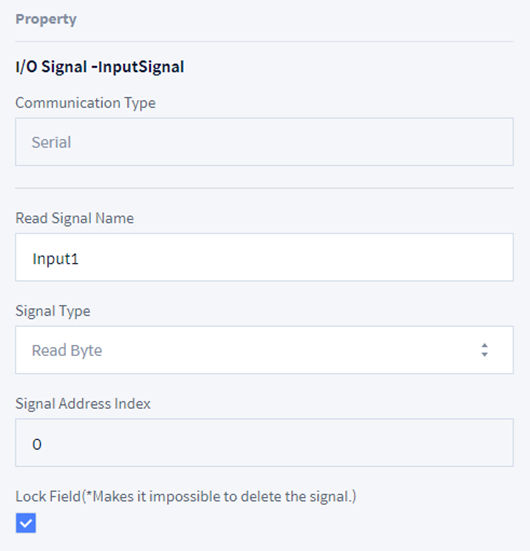

Item	Description
Read Signal Name	Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.
Signal Type	Signal type is Read Byte
Signal Address Index	This menu is deactivated.
Lock Field	Check the item to set so that it cannot be edited or deleted in the top controller.
