FOCAS Type

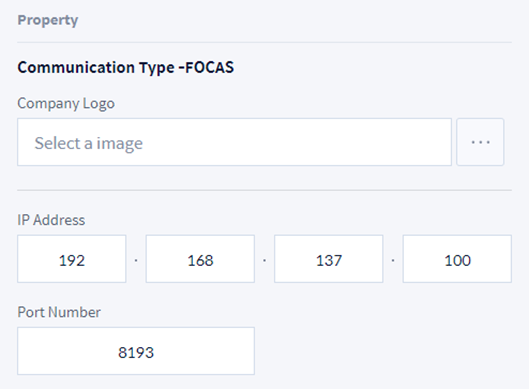

Item	Description
Company Logo	Attach a logo image of the company manufacturing the Worcell Item.
IP Address	Enter the IP adress for the remote location.
Port Number	Enter the port number for the remote location.

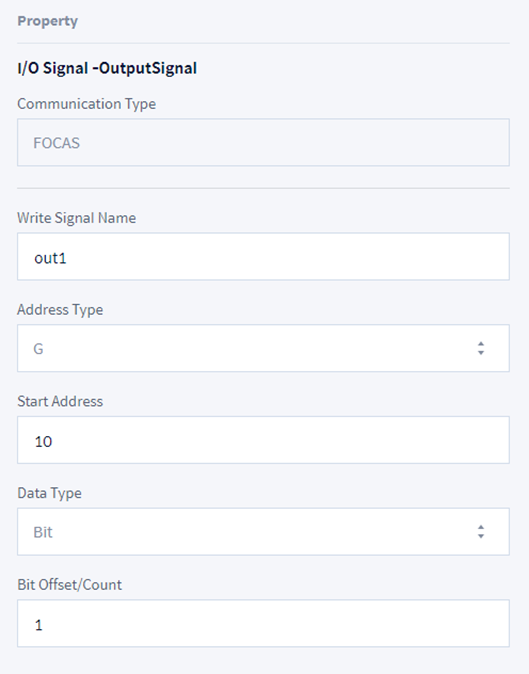

Item	Description
Write Signal Name	Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.
Address Type	Set the address type of FOCAS. Address Type - G,F,Y,X,A,R,T,K,C,D,M,N,E,Z
Start Address	Set the start address.
Data Type	Set the data type of FOCAS. Data Type - Bit, Char, Word, Long, Float, Double
Bit Offset/Count	Set the offset for bit and data count for other data types.

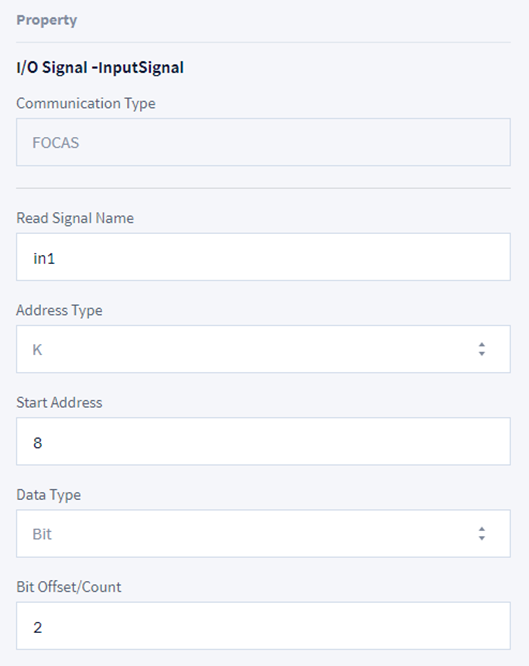

Item	Description
Read Signal Name	Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.
Address Type	Set the address type of FOCAS. Address Type - G,F,Y,X,A,R,T,K,C,D,M,N,E,Z
Start Address	Set the start address.
Data Type	Set the data type of FOCAS. Data Type - Bit, Char, Word, Long, Float, Double
Bit Offset/Count	Set the offset for bit and data count for other data types.
